Hernik IPAI-MAX Special Needs Car Seat

Hernik IPAI-MAX – Special Needs Car Seat

Our innovative allrounder | Rehabilitation car seat | Full European R129 approval

The IPAI-MAX is a modified car seat that can be individually adapted to the special needs of your child and equipped accordingly. It pairs a generous, highly configurable seating area with the full postural-support and accessory range of the Hernik IPAI family.

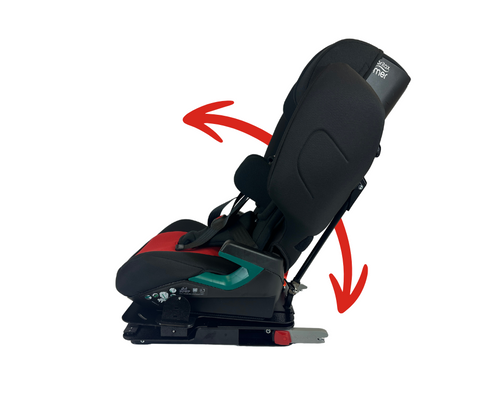

Because transfers are often a particular challenge for parents, an optional newly developed swivel mechanism allows a 90° rotation, making it much easier to place the child in the seat and fasten the harness. Aluminium thoracic supports adjust in width and height without tools – more room in winter and a close, supportive position in summer – and an integrated 5-point harness comes as standard. The usual accessories such as an abduction wedge, footrest, seat-depth extension and support and safety cushions are also available.

The IPAI-MAX has successfully completed extensive crash testing to the R129/03 standard and holds full European approval with an E-number.

Standard Features

• Crash-tested according to ECE R129/03; full European approval
• Five-point harness with upholstery, height adjustable
• Belt mechanics installed into the front of the seat

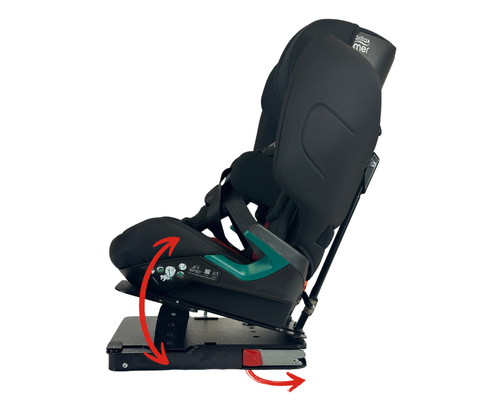

• Solid aluminium board with stepless backrest recline mechanism
• Headrest height adjustable, including belt guides
• Additional 20 mm upholstery for the back & headrest
• ISOFIX adapter or clamp bow integrated in base board

Technical Specifications

Some dimensions vary depending on whether the extra cushion is fitted.

• Seat width (pelvis): 32 cm without extra cushion / 26 cm with
• Seat width (knees): 38 cm
• Seat depth: 33 cm without / 30 cm with
• Back height: 41–56 cm without / 38–53 cm with
• Crown height: 59–76 cm without / 56–73 cm with
• Height laterals: 24–36 cm without / 21–33 cm with
• Distance laterals: 15–28 cm
• Back angle: 80°–120°
• Total height: 71–88 cm
• Total width: 44 cm
• Total depth: 44 cm
• Weight: from 8.0 kg

Specialist Assessment Recommended

The IPAI-MAX is a specialist rehabilitation car seat and should be selected and configured following an individual assessment. The appropriate colour, cushions, positioning supports and accessories will depend on the child's height, weight, physical presentation and postural requirements, as well as the vehicle in which the seat will be installed. Contact In Car Safety Centre to arrange an assessment and quotation.

Optional Accessories & Configuration Options

The IPAI-MAX is configured to each child. Prices below are Hernik export list prices (EUR, ex-works) and are shown as a configuration guide only — please contact In Car Safety Centre for a full GBP quotation.

BASE SEAT
• IPAI-MAX red-black (450000-E1) — €1,790
• IPAI-MAX grey-black (450000-E2) — €1,790

BASE BOARD (required for the options in this section; incl. ISOFIX adapter or clamp bow)
• Base board (450000-BEI ISOFIX / 450000-BEK clamp bow) — €650
• Swivel base, right or left (450200-E) — €435
• Angular adjustment 5°-20° (450100-E) — €335
• Conversion set ISOFIX adapter ➔ clamp bow (450020-E) — €265
• Conversion set clamp bow ➔ ISOFIX adapter (450030-E) — €265
• Foot rest (450450-E) — €335
• Foot rest swing-up, requires 450450-E (450452-E) — €190
• Outrigger, requires 450450-E (450453-E) — €190
• Foot roll (450455-E) — €335

EXTRA CUSHIONS
• Back cushion, reduces seat depth ~3 cm (450700-E) — €140
• Seat cushion, reduces back height ~3 cm (450720-E) — €130
• Head upholstery left & right, headrest ~5 cm tighter (450740-E) — €155
• Head upholstery behind, head comes 2 cm forward (450750-E) — €135
• Upper body upholstery, pair, reduces back width ~6 cm (450710-E) — €175
• Hip upholstery, pair, reduces seat width ~6 cm (450730-E) — €140

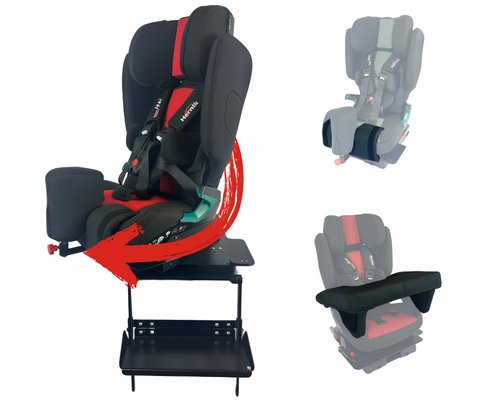

STABILISATION FITTINGS
• Abduction block, removable (450400-E) — €275
• Head fixation (450630-E) — €375
• Security tray (450600-E) — €465
• Side supports, pair, adjustable in height/depth/width (450800-E) — €425
• Seat-depth adapter, +2 to 12 cm (450850-E) — €315
• Lateral support (450810-E) — €325
• Belt to connect the chest straps (450640-E) — €125

FURTHER OPTIONS
• Protection mat (450780-E) — €85
• Security pad for the buckle, snap fastener (450650-E) — €165
• Security pad for the buckle, magnetic lock (450655-E) — €225

Accessory selection should be based on an individual assessment of the child's postural and travel requirements.
